The input of a character

With a menu, a tool bar, or the pop up menu of a right click, if a character is chosen, it will become the character input mode. If a character input finishes, let's change to the line input mode or the selection mode.

The input of a character When carrying out a character input, a character input is chosen and the left button of a mouse is pushed in the place on which it is drawn on [ no ] the schematic.

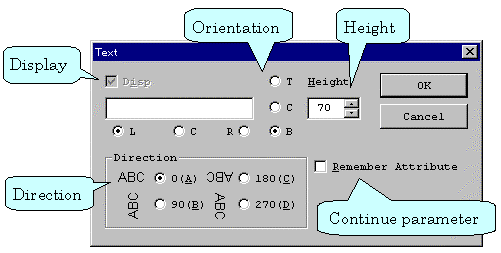

Then, since a dialog is displayed, please input a character and a parameter.

Character height Please be careful not to make [ many / not much ] the size of a character, since a display will become slow if a kind is increased.

Cautions If a character input is completed, we will recommend you to change into the input mode of a wire.
If it is still this mode, edit of a double click will not function well.

The character with a bar A character display of negative logic is possible for D2 CAD.
In order to attach a bar on a character, it is then. It is used before and after a character to attach "~" to.
Only a head is OKed when attaching all.
Example 1~ABC~/DEF If it writes, a bar is attached on ABC.
example 2) If it is written as ABC/~DEF~, a bar is attached on DEF. (The last "~" is omissible)
If it is written as example 3~AB~CDE~F~, a bar is attached on AB and F (the last "~" is omissible).
